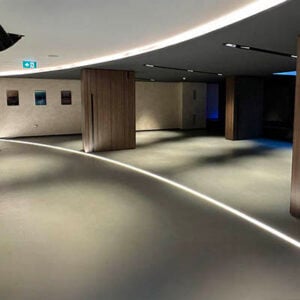

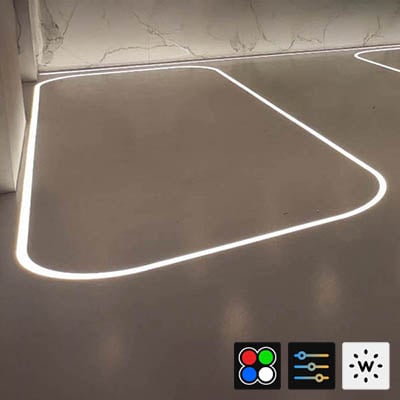

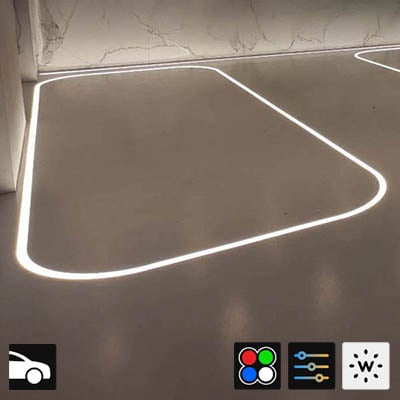

Drive Line L110X is a linear or curved IP67-rated LED luminaire, made in AISI 316L stainless steel, for flush installation on floors in indoor or outdoor areas. It is driveover rated, and available with custom curvatures to follow every project. It is available in static or tunable white, and RGBW color temperatures, diffused optics, and a color rendering index of >90. Not cuttable in the field.
| Application | Curved or Linear LED Strip |
| Construction |
Body: AISI 316L Stainless Steel Lens / Diffuser: Opal Polyurethane Resin Cable Length: 39.4” (2x0.5mm2) included |
| Wattage |
22 W per 3.3 ft (1m) - Static White 24 W per 3.3 ft (1m) - Tunable White 36W per 3.3 ft (1m) - RGBW |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT |
2200K, 2500K, 2700K, 3000K, 4000K 2700K-6000K Tunable White, RGBW |
| CRI | >90 |
| Delivered Lumens |
1560 lm / 3.28’ (3000K) 1900 lm / 3.28’ (Tunable White) 1600 lm / 3.28’ (RGBW) |
| Optic Options | Diffuse |
| Finishes | Opal Resin |
| Accessories | See Datasheet |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
