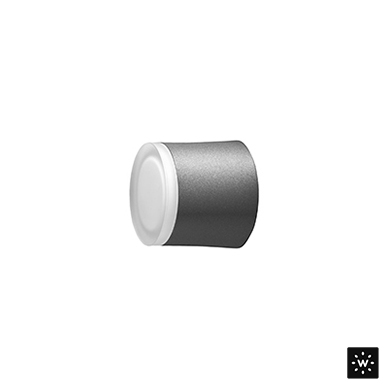

FOG R is an outdoor ceiling or wall fixture that comes in a recessed or surface-mounted versions with 3 diameter sizes each offering resistance and longevity. The FOG R Surface Wall version has a cylindrical body and comes in 4 different finishes with diffuse optics.
| Application | Wall Mounted |
| Construction |
Body: Die-Cast Aluminum Lens: Opal Tempered Glass |
| Wattage | 6W, 14.5W, 22W |
| Power Supply | Remote 24VDC Constant Voltage (FOG R 80), Remote 700mA Constant Current (FOG R 125), Remote 1050mA Constant Current (FOG R 200) |
| Dimming | Available |
| CCT | 2700K, 3000K |
| CRI | >90 |
| Delivered Lumens |
345 lm (FOG R 80 - 3000K) 950 lm (FOG R 125 - 3000K) 1500 lm (FOG R 200 - 3000K) |
| Optic Options | Diffuse |
| Finishes | 5 Standard |
| Accessories | See Datasheet |
| Bug Rating |
B0-U1-G0 (FOG R 80) B1-U1-G1 (FOG R 125, FOG R 200) |
| Ingress Protection | IP65 |
| Impact Resistance | IK08 |
