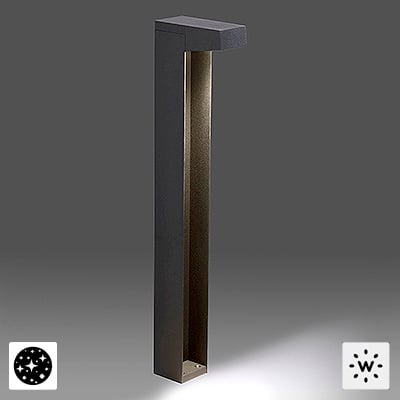

KL4 Square Head LED Bollard, 4.0" head x 2 heights, 30W, Integral, 2142-2349 lm, IP65

KL4 is an outdoor LED bollard, based off the Klee bollard, that is offered in 2 heights – 2-foot or 3-foot – 5 color temperatures, 3 optic options and 5 standard finishes. Dark Sky compliant for output below 80°.

Application Bollard
Construction Body: Aluminum
Lens: Clear
Wattage 30W
Power Supply Integral 120-277VAC
Dimming 0-10V Dimming
CCT 2200K, 2700K, 3000K, 4000K
RGBW (with Integral DMX decoder)
CRI >80
Delivered Lumens 2142 lm (24°, 3000K)
2034 lm (36°, 3000K)
2349 lm (Asym, 3000K)
Dark Sky compliant, output below 80°
Optic Options 3 Options
Finishes 5 Standard, Custom RAL
Accessories See Datasheet
Ingress Protection IP65
etl Logo
