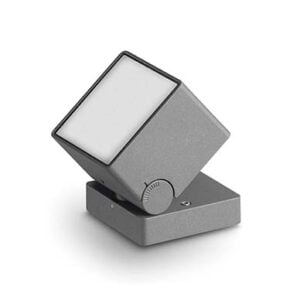

KUBOID is an adjustable, hexahedron cube luminaire that comes in 3 sizes and is suitable for outdoor installation on ceilings, walls, floors or in ground using steel stakes. KUBOID 90 is the smallest version at 3.5” cubed and offers 4 light beam options and 4 standard finishes.
Application | Adjustable Floodlight |
Construction |
Body: Die-Cast Aluminum Lens: Opal Glass (diffuse version) Silk-screened printed glass (optics versions) |
Wattage | 6W LED, 8W total |
Power Supply | Remote 24VDC Constant Voltage |
Dimming | Available, See Datasheet |
CCT | 3000K (other colors on request) |
CRI | >90 |
Delivered Lumens | 590 lm (30°) |
Optic Options |

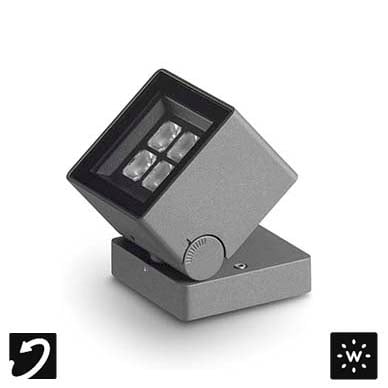

Diffuse, Spot, Medium, Flood Adjustable ±120° - horizontal axis Adjustable 90° on the vertical one |
Finishes | 5 Standard, See Datasheet |
Accessories | See Datasheet |
Bug Rating |
B0-U1-G0 (diffuse) B1-U1-G0 (optics) |
Ingress Protection | IP67 |
Impact Resistance | IK08 |
