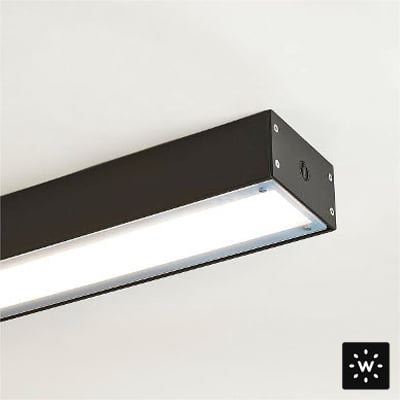

SQ1 is a vandal resistant linear surface mounted LED luminaire that comes in a 4 foot length and is suitable for continuous row mounting. It is available in 3 color temperatures and 3 standard finishes. B.A.B.A. Compliant.
| Application | Surface Mount |
| Construction |
Body: Extruded Aluminum Ends: Die-Cast Aluminum Lens: Opal Polycarbonate |
| Wattage | 7W per foot, 28W per row |
| Power Supply | Integral 120-277VAC |
| Dimming | 0-10V Dimming |
| CCT | 3000K, 3500K, 5000K |
| CRI | >90 |
| Delivered Lumens | 1410 lm per row (3500K) |
| Finishes | 3 Standard, Custom RAL. See Datasheet. |
| Bug Rating | B1-U1-G1 (3500K) |
| Ingress Protection | IP65 |
| Impact Resistance | IK10++ |
