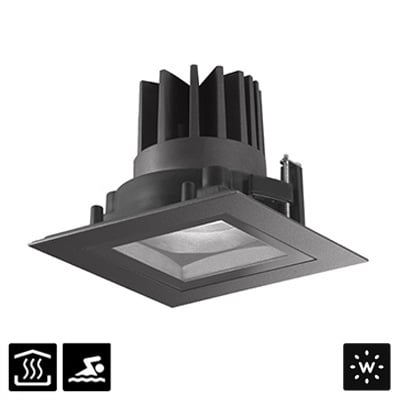

Altopiano is a family of compact, recessed outdoor downlights available in 3 sizes, round or square, perfectly suitable for hospitality and residential sectors, as well as steam rooms and natatoriums, NOT saunas. Available in static white, as well as RGBW mixing and Dim to Warm. Altopiano 2.1 is the 4.7” square, static white version.
| Application | Recessed Downlight |
| Construction |
Body: Thermally Conductive Technopolymer Trim: Stainless Steel Lens: Diffuse or Extra-clear Glass |
| Wattage | 16W |
| Power Supply | Remote 700mA Constant Current |
| Dimming | Available, See Datasheet |
| CCT | 2200K, 2700K, 3000K, 4000K |
| CRI | 80, >90 (2200K only available >90) |
| Delivered Lumens |
1060 lm (3000K, 57°, CRI >90) 1251 lm (3000K, 57°, CRI 80) |
| Optic Options | 6 Standard, See Datasheet |
| Finishes | 5 Standard, Custom RAL on request |
| Accessories | See Datasheet |
| Bug Rating |
B1-U0-G0 (3000K, 80, 57°, 67°) B1-U0-G0 (3000K, >90, 16°, 26°, 38°, 57°, 16°x67°) B2-U0-G0 (3000K, 80, 16°, 26°, 38°) B1-U1-G0 (3000K, Diffuse) |
| Ingress Protection | IP66 |
| Impact Resistance | IK07 |
