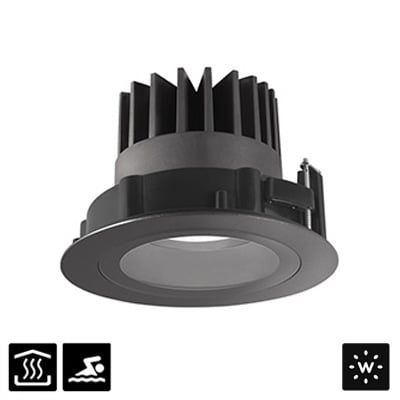

Altopiano is a family of compact, recessed outdoor downlights available in 3 sizes, round or square, perfectly suitable for hospitality and residential sectors, as well as steam rooms, NOT saunas. Available in static white, as well as RGBW mixing and Dim to Warm. Altopiano 3.0 is the 5.5” round, static white version.
Application | Recessed Downlight |
Construction |
Body: Thermally Conductive Technopolymer Trim: Stainless Steel Lens: Diffuse or Extra-clear Glass |
Wattage | 20W |
Power Supply | Remote 500mA Constant Current |
Dimming | Available, See Datasheet |
CCT | 2200K, 2700K, 3000K, 4000K |
CRI | 80, >90 (2200K only available >90) |
Delivered Lumens |
1683 lm (3000K, 18°, CRI >90) 1988 lm (3000K, 18°, CRI 80) |
Optic Options | 6 Standard, See Datasheet |
Finishes | 5 Standard, Custom RAL on request |
Accessories | See Datasheet |
Bug Rating |
B1-U1-G0 (3000K, Diffuse) B2-U0-G0 (3000K, 80, 18°, 24°, 61°) B2-U0-G0 (3000K, >90, 18°, 24°, 61°, 20°x72°) B2-U1-G0 (3000K, 80, 37°, 20°x72°) B2-U1-G0 (3000K, >90, 37°) |
Ingress Protection | IP66 |
Impact Resistance | IK08 |
