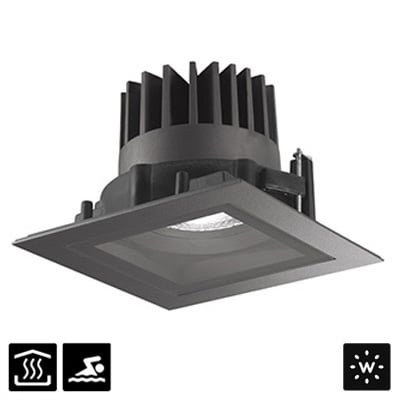

Altopiano 3.1 Recessed LED Downlight, 5.5" Sq., 20W Static, 1988 lm, IP66

Altopiano is a family of compact, recessed outdoor downlights available in 3 sizes, round or square, perfectly suitable for hospitality and residential sectors, as well as steam rooms, NOT saunas. Available in static white, as well as RGBW mixing and Dim to Warm. Altopiano 3.1 is the 5.5” square, static white version.

Application Recessed Downlight
Construction Body: Thermally Conductive Technopolymer
Trim: Stainless Steel
Lens: Diffuse or Extra-clear Glass
Wattage 20W
Power Supply Remote 500mA Constant Current
Dimming Available, See Datasheet
CCT 2200K, 2700K, 3000K, 4000K
CRI 80, >90 (2200K only available >90)
Delivered Lumens 1683 lm (3000K, 18°, CRI >90)
1988 lm (3000K, 18°, CRI 80)
Optic Options 6 Standard, See Datasheet
Finishes 5 Standard, Custom RAL on request
Accessories See Datasheet
Bug Rating B1-U1-G0 (3000K, Diffuse)
B2-U0-G0 (3000K, 80, 18°, 24°, 61°)
B2-U0-G0 (3000K, >90, 18°, 24°, 61°, 20°x72°)
B2-U1-G0 (3000K, 80, 37°, 20°x72°)
B2-U1-G0 (3000K, >90, 37°)
Ingress Protection IP66
Impact Resistance IK07
UGR < 19 for 18°, 24° and 37° optics.
