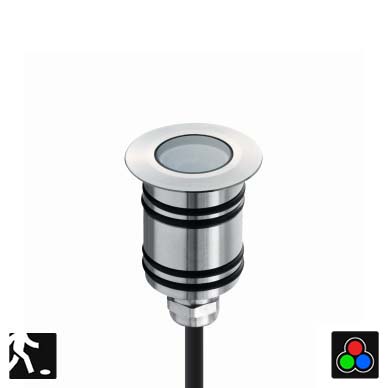

The Bright 1 316L Series are recessed uplights made of stainless steel that are suitable for installation in swimming pools and fountains up to a depth of 32.8’ (10 m). The Bright 1.8 316L is available in diffuse optics and with RGB light.
| Application | LED Submersible Luminaire (wall/ingrade) |
| Construction |
Body and Trim: AISI 316L Stainless Steel Lens: Tempered, Transparent Extra-Clear Glass Cable Length: 16.4’ |
| Wattage | 1.2W |
| Power Supply | Remote 12VDC Constant Voltage |
| Dimming | Available |
| CCT | RGB |
| Delivered Lumens | 11 lm; (R) 3 lm, (G) 6 lm, (B) 2 lm |
| Optic Options | 2 Standard |
| Finishes | AISI 316L Stainless Steel |
| Accessories | See Datasheet - REQUIRED OUTER CASING |
| Ingress Protection | IP68 |
| Impact Resistance | IK10 |
Fixture comes equipped with IPS protection system.
UL 676
WC5003 - Outer Casing
