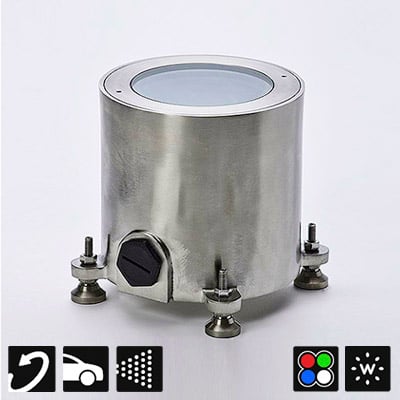

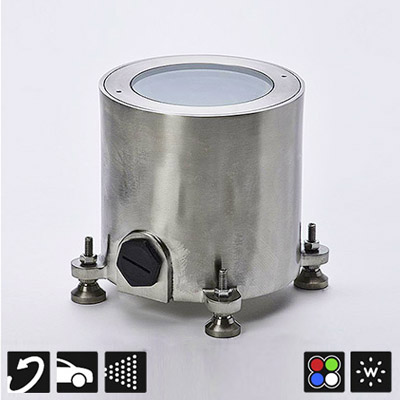

C5X is a wet label, adjustable in-grade or submersible uplight that is 5.75 inches in diameter, and suitable for power washing and submersion using special remote drivers. It is adjustable +/- 10° (total 20°) and is rotatable 120° front and back. It comes in 4 CCTs or RGBW with integral DMX decoder. Driveover rated up to 11,000 lbs.
| Application | In-Grade Uplight |
| Construction |
Body: Cast Stainless Steel 304 Alloy Lens: 0.4” Thick, Clear, Non-Skid or Frosted Tempered Glass Lens Frame: Threaded “Bottle Cap” |
| Wattage |
10W (Static White - 350mA) 12W (RGBW - 24VDC with DMX Decoder) |
| Power Supply | Remote 350mA (Static) or 24VDC (RGBW) |
| Dimming | Available |
| CCT | 2700K, 3000K, 3500K, 4000K, RGBW |
| CRI | >80 |
| Delivered Lumens |
1334 lm (3000K - Static White) 750 lm (3000K - RGBW) |
| Optic Options |
14°, 25° (Static White) 18°, 24° (RGBW) |
| Finishes | Stainless Steel |
| Accessories | See Datasheet |
| Ingress Protection | IP68, IP69 |
Driveover rated to 11,000 lbs
