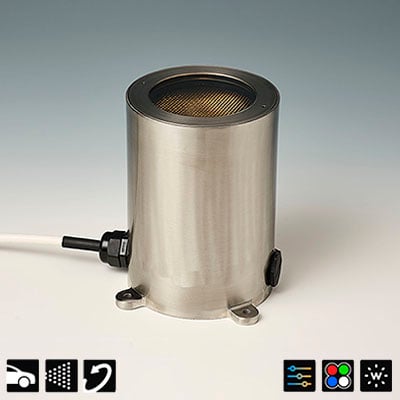

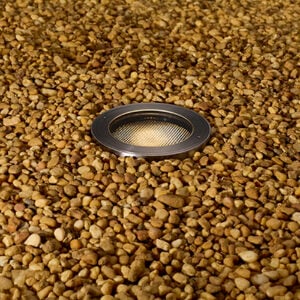

CDL is a wet label, adjustable in-grade uplight CDX with an integral driver that is suitable for power washing. It is adjustable +/- 10° (total 20°) and is rotatable 120° front and back. It comes in 4 CCTs or RGBW + tunable white with a stainless steel finish. The static white driver is capable of 3 dimming protocols.
| Application | In-Grade Uplight |
| Construction |
Body: Cast Stainless Steel 304 Alloy Lens: 0.4” Thick, Clear, Non-Skid or Frosted Tempered Glass Lens Frame: Threaded “Bottle Cap” |
| Wattage |
10W (Static White - 120-277VAC) 12W (RGBW+Tunable White - 120-277VAC) |
| Power Supply | Integral 120-277VAC |
| Dimming | 0-10V, ELV, Triac Dimming on Static White |
| CCT |
2700K, 3000K, 3500K, 4000K RGBW+Tunable White |
| CRI | >80 |
| Delivered Lumens |
1334 lm (3000K - Static White) 750 lm (3000K - RGBW+Tunable White) |
| Optic Options |
14°, 25° (Static White) 18°, 24° (RGBW+Tunable White) |
| Finishes | Stainless Steel |
| Accessories | See Datasheet |
| Ingress Protection | IP68, IP69 |
Driveover rated up to 11,000 lbs
