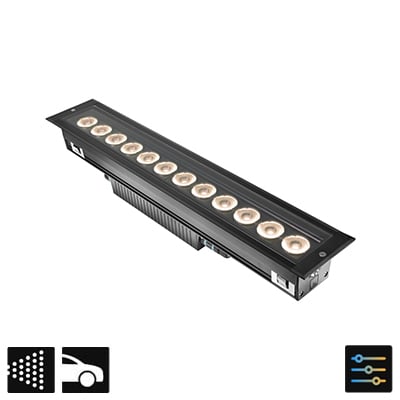

Colorado 7 Adj. Linear In-grade Tunable White LED, Trim, Driveover, 3 lengths, 43W/64W/85W, 3845-7691 lm, IP65, IP67, IP69

Colorado is an adjustable (+/- 20°), driveover-rated rated up to 4400 lbs, linear profile with a powerful lighting performance – more that 5700 lm per square meter (3.3 ft) – for architectural lighting of facades up to 65.6 ft (20 m) tall. Each series is available in 3 lengths and 3 configurations (recessed flush, recessed frame and surface mounted using brackets). Colorado 7 Series is the surface mounted (ceiling, wall, floor), tunable white version

Application Linear In-Grade Uplight - Tunable White
Construction Body: Anticorodal Aluminum
Caps: Technopolymer
Lens: Serigraphed, Acid-Etched (Diffuse Version) & Transparent Extra-Clear Glass
Wattage 43W, 64W, 85W
Power Supply Integral 120-277VAC
CCT Tunable White (2200K-5000K)
Delivered Lumens 3845 lm (Colorado 7.0 - 3500K, 16°)
5768 lm (Colorado 7.1 - 3500K, 16°)
7691 lm (Colorado 7.2 - 3500K, 16°)
Optic Options 5 Adjustable Available, See Datasheet
Finishes Anodized Black
Accessories See Datasheet
Bug Rating B2-U1-G0 (Colorado 7.0, 35°)
B4-U1-G0 (Colorado 7.1, 16°)
B4-U1-G0 (Colorado 7.2, 26°)
Ingress Protection IP65, IP67, IP69
Impact Resistance IK10
etl Logo
