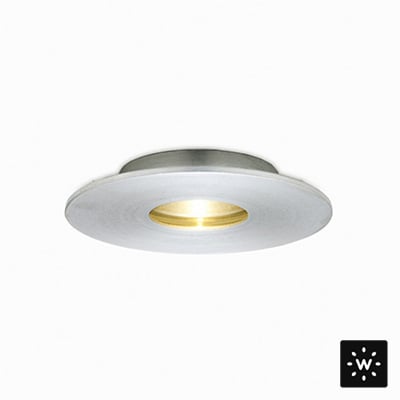

Dotz Hydra Round Wet Label LED Downlight, Ø2.4", 1W / 3W, 81 lm, IP65

Dotz Hydra is a round wet label LED downlight with on board 0-10V dimming which can be installed recessed with 3 springs or panel mounted with 1.0” conduit nut on the threaded part of the body. It is available with a clear, frosted or opal lens and CNC machined trim in aluminum, brass or stainless steel.

Application Downlight
Construction Body: Die Cast Aluminum
Lens: 3/16” Tempered Glass
Wattage 1W, 3W
Power Supply Remote 24VDC Constant Voltage
Dimming Internal board for 24VDC operation
and on board 0-10V dimming
CCT 3000K, 4000K, 5000K
(Static color on request)
CRI >80
Delivered Lumens 24 lm (1W, 5000K, frosted, no optic)
8.3 lm (1W, 5000K, opal, no optic)
81 lm (3W, 3000K, clear, 25°)
42 lm (3W, 3000K, frosted, no optic)
14.4 lm (3W, 3000K, opal, no optic)
Optic Options 3 Available, See Datasheet
Finishes 7 Standard, See Datasheet
Ingress Protection IP65

Fixture complies with LM79 and LM80
Made in the U.S.A.
Complies with ARRA

Available Quantity
(32) HYD.340.T2.96
