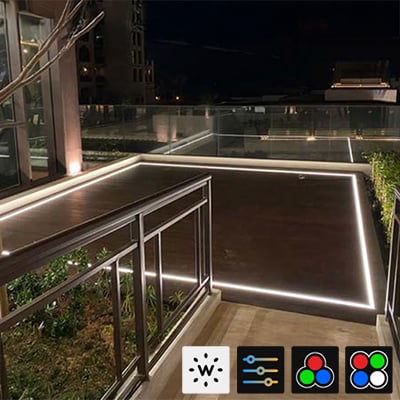

Drive Line L704X is a customized linear (curved on request) IP68-rated LED luminaire, made in AISI 316L stainless steel, for flush installation on floors in indoor or outdoor areas. It is driveover rated, and available in custom length, max 9.5 feet, and custom curvatures on request to follow every project. It is available in static or tunable white, RGB and RGBW and diffused optics. Not cuttable in the field.
| Application | Custom Linear or Curved |
| Construction |
Body: AISI 316L Stainless Steel Lens / Diffuser: Opal Polyurethane Resin |
| Wattage |
22W per 3.3 ft - Static White 12W per 3.3 ft - Tunable White 15W per 3.3 ft - RGB 18W per 3.3 ft - RGBW |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2200K, 2700K, 3000K, 3500K, 4000K, 4500K, 5500K, Tunable: 2900K-5900K, RGB, RGBW |
| CRI | >90 (Static, Tunable); 80 (RGB, RGBW) |
| Delivered Lumens |
790 lm / 3.28’ (3500K) 780 lm / 3.28’ (Tunable White) 375 lm / 3.28’ (RGB) 450 lm / 3.28’ (RGBW) |
| Optic Options | Diffuse |
| Accessories | See Datasheet |
| Ingress Protection | IP68 |
| Impact Resistance | IK10 |
