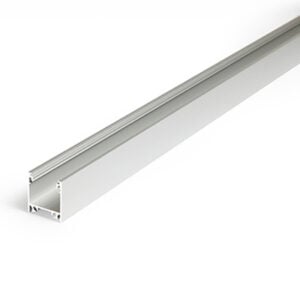

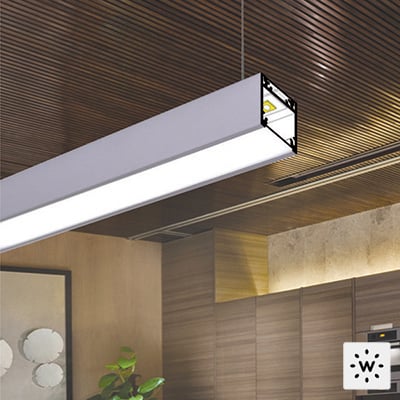

Linea 20 is a surface or suspended LED linear profile with a continuous light line (with 120 LEDs / 3.3 ft and opal diffuser applied) and angled illuminated connections. It comes in four lengths, 39.4”, 78.7”, 118.1” or 159.5”. With a body made of aluminum, it comes in 4 standard finishes and over 20 different accessories.
| Application | Surface Mount or Suspended |
| Construction | Body: Aluminum |
| Wattage | 18W per 3.28 ft (1 m) |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2700K, 3000K, 3500K, 4000K |
| CRI | 85 |
| Delivered Lumens | 2034 lm per 3.28 feet (3000K) |
| Optic Options | LED Tape, Field Cuttable |
| Finishes |
Anodized White Painted Black Anodized Raw Aluminum |
| Accessories | Required, See Datasheet |
| Ingress Protection | IP20 |
