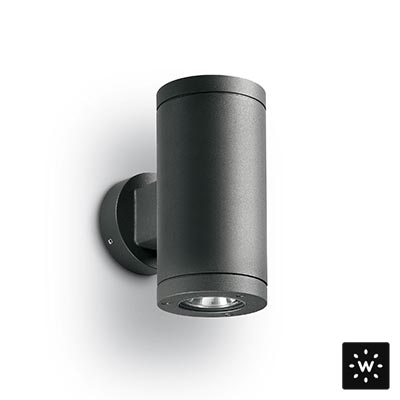

LYRAS 80 WALL is a single or double beam, wall-mounted, Ø3.4″ cylinder luminaire that can be suitable for outdoor installation thanks to its IP66 rating. It is available with spot, medium or wide flood optics, and 2 standard finishes.
| Application | Single or Double Beam Wall Mount |
| Construction |
Body: Die-Cast Aluminum Lens: Extra-clear Tempered Glass 0.31” (8 mm) |
| Wattage |
6W Single 12W Double |
| Power Supply | Remote 500mA, not included. See page 2 |
| Dimming | Available |
| CCT |
2700K 3000K 4000K |
| CRI | >90 |
| Delivered Lumens |
400 lm per beam (14°, 3000K) 384 lm per beam (32°, 3000K) 384 lm per beam (54°, 3000K) |
| Optic Options |
14° (Spot) 32° (Medium) 54° (Wide Flood) |
| Finishes |
Graphite Gray |
| Accessories | N/A |
| Bug Rating |
B1-U0-G0 (Lyras 80 Single 14°, 32°, 54°) B1-U3-G0 (Lyras 80 Double 14°, 32°, 54°) |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
