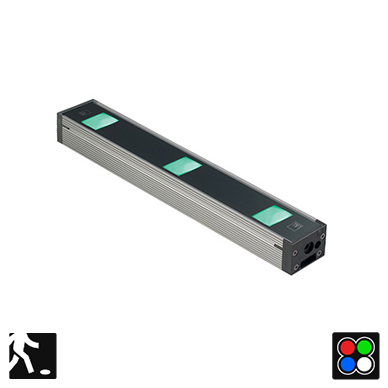

The Neva 7 series is a linear profile with deep-set optics perfect for architectural lighting and outdoor applications. Available in 4 standard lengths and RGBW light. Recessed mount when used with outer casings or surface mount when used with adjustable brackets.
| Application |
Linear Profile - Recessed (Surface Mount Available) |
| Construction |
Body: Anodized Aluminum Lens: Tempered and Serigraphed Glass |
| Wattage | 15W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | RGBW (4000K) |
| CRI | >80 |
| Delivered Lumens | 525 lm: (R) 84 lm, (G) 186 lm, (B) 57 lm, (W) 198 lm (4000K, 32°) |
| Optic Options | 5 Standard |
| Accessories | See Datasheet |
| Bug Rating |
B1-U1-G0 (4000K, 18°, 26°, 32°, 44°) B0-U1-G0 (4000K, 78°) |
| Ingress Protection | IP67 |
| Impact Resistance | IK06 |
Fixture equipped with IPS protection system
Fixture equipped with PID (Protective Impedance Device) and NTC (Built-In Temperature Sensor)
WC6500 - Outer Casing (QUICK SHIP)
WN6005 - Alignment Kit
