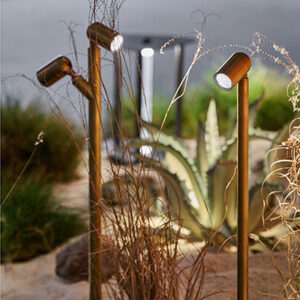

Pivot B is a new application for the compact Pivot floodlights, where poles with spikes provide flexibility in accentuating details in nature, such as flowerbeds and hedges, as well as illuminating pathways, architectural facades, statues and frescoes. They come in 3 sizes, and the poles conceal the power cables for an unobtrusive look among the greenery, with a wide range of optics, anti-glare accessories, and finishes. Dark Sky compliant for output below 80°
| Application | Post Mounted Adjustable Floodlight |
| Construction |
Body: Anticorodal Aluminum Lens: Tempered Extra-Clear Glass |
| Wattage | 10W, 14W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2700K, 3000K, 4000K |
| CRI | 80, >90 |
| Delivered Lumens |
1064 lm (3000K, 25°, 14W, CRI 80), 676 lm (3000K, 25°, 10W, CRI >90), 835 lm (3000K, 25°, 10W, CRI 80), 862 lm (3000K, 25°, 14W, CRI >90) |
| Optic Options | 5 Standard, See Datasheet |
| Finishes | 4 Standard, Custom RAL |
| Accessories | REQUIRED - See Datasheet |
| Bug Rating |
B1-U0-G0 (3000K - Various Optics) B1-U1-G0 (3000K - Various Optics) |
| Ingress Protection | IP66 |
| Impact Resistance | IK08 |
