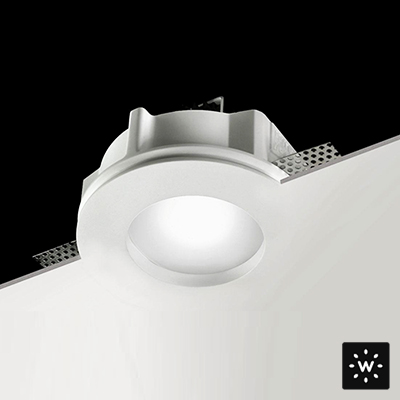

Rim Recessed LED, Coral®, IC / Chicago Plenum Rated, Ø3.2”, 9W, IP40

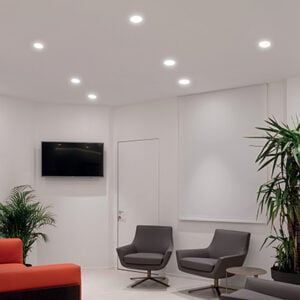

Rim is a round recessed downlight made of Coral® suitable for indoor installation on ceilings where it becomes an integral part of the surface. It is available in 3000K as standard with a 40° optic and a 90° light beam inclination. JA8-2016 Certified and can be used in IC, Chicago Plenum, or concrete pour ceilings.

Application Recessed Downlight
Construction Body: Coral®
Lens: Frosted Glass
Wattage 9W
Power Supply Remote 500mA Constant Current
Dimming Available
CCT 3000K
2700K, 4000K on request
CRI >90
Delivered Lumens 557 lm (3000K)
Optic Options 40°
Finishes Coral® - Unfinished
Accessories See Datasheet
Ingress Protection IP40
etl Logo
