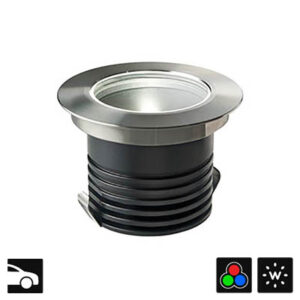

Smoothy 2.4 LED In-Grade Uplight or Downlight, Ø3.3", 3.5W/5W/7W, 235-463 lm, RGB, IP67

Walkover rated LED in-grade uplight for outdoor use with no visible screws. Can also be a downlight when used with the fixing spring accessory. The Bright 2, Smoothy 2 and Litus 2 series all use the same LED.

Application In-Grade Uplight or Downlight
Construction Body: Anodized aluminium
Trim: AISI 316L Stainless Steel or Brass
Lens: Tempered, Transparent Extra-clear Glass
(optics version); Sandblasted, Tempered Extra-clear Glass (diffuse version)
Wattage 3.5W / 5W / 7W
Power Supply Remote 24VDC Constant Voltage; Remote 700mA Constant Current (RGB only)
Dimming Available, See Datasheet
CCT 2700K, 3000K, 4000K, RGB (7W only)
(3500K available, consult factory)
CRI >80, 90
Delivered Lumens 284-463 lm (White), 235 lm (RGB)
See Datasheet
Optic Options 10 Standard (White), 4 Standard (RGB),
See Datasheet
Finishes Stainless Steel or Brass, RAL upon request
Accessories See Datasheet
Bug Rating B0-U3-G0 (3000K, all versions)
Ingress Protection IP67
Impact Resistance IK08

Fixture equipped with IPS protection system.

Available Quantity
(2) WG0502 - Retaining Spring
