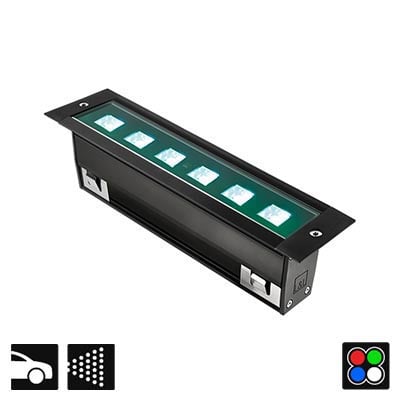

Tago is a linear profile suitable for architectural lighting of facades of historic and public buildings, hotels and residential exteriors. Each is available in 3 lengths with a wide range of optics and color temperatures. Tago 4 series is recessed RGBW version with trim for floors, ceilings and walls, that comes with Integral DMX512 decoder with RDM. Requires a DMX/RDM controller provided by others. Suitable for power washing.
| Application | Linear Profile With Frame/Trim |
| Construction |
Body: Black, Anodized, Anticorodal Aluminum Caps: Technopolymer Lens: Tempered Extra-Clear Glass Cable Length: 4.92’ |
| Wattage | 14W, 24W, 49W |
| Power Supply | Integral 120-277VAC |
| CCT | RGBW |
| Delivered Lumens |
1374 lm - R: 90 lm, G: 660 lm, B: 132 lm, W: 492 lm (4000K, 24°) 2748 lm - R: 180 lm, G: 1320 lm, B: 264 lm, W: 984 lm (4000K, 24°) 5496 lm - R: 360 lm, G: 2640 lm, B: 528 lm, W: 1968 lm (4000K, 24°) |
| Optic Options | 24°, 30°, 52° |
| Finishes |
Anodized Black (4 Stage Marine Grade Finish) |
| Accessories | See Datasheet - Required Outer Casing |
| Bug Rating |
B1-U1-G0 (Tago 4.0 - 30°) B2-U1-G0 (Tago 4.1 - 30°) B3-U1-G0 (Tago 4.3 - 30°) |
| Ingress Protection | IP65, IP67, IP69 |
| Impact Resistance | IK09 |
