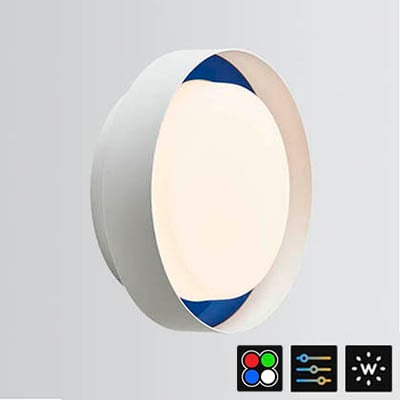

Zio is a round, surface mounted luminaire with an inner ring for installation on walls or ceilings. It is IP65 wet label rated and available in static white (integral driver) tunable white (remote driver), and RGBW with an integral DMX control and driver. The ring can be painted in a contrasting color for visual effect.
| Application | Wall or Ceiling Mount |
| Construction |
Body: Extruded Aluminum Lens: Acrylic |
| Wattage | 13W (Static White) |
| Power Supply | Integral 120-277VAC (Static White)Integral DMX 120-277VAC (RGBW)Remote Driver 500mA (Tunable White) |
| Dimming | 0-10V Dimming (RGBW is DMX), Lutron |
| CCT |
2700K, 3000K, 3500K, 4000K, RGBW, Tunable White (2700K-6500K) |
| CRI | >90 |
| Delivered Lumens | 1157 lm (3000K) |
| Finishes |
BODY: 5 Standard, Custom RAL on request RING: 8 Standard, Custom RAL on request |
| Ingress Protection | IP65 |
ADA Compliant
