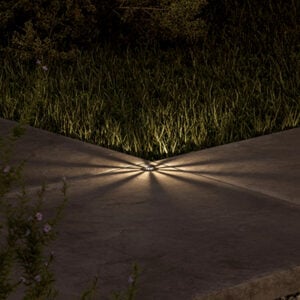

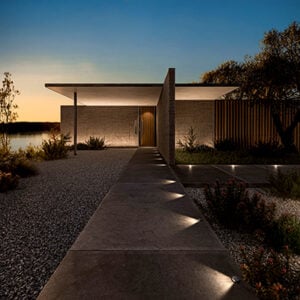

Bright SL are a series of walkover step lights in the well-established Bright family that designed to define pathways, walkways or steps by creating grazing effects across surfaces and walls. Bright 1.D is a recessed step light for outdoor applications with radial optics available in 4 color temperatures, 7 beam configurations and a stainless steel finish. The Bright 1, Smoothy 1 and Litus 1 series all use the same LED.
| Application | Recessed Step Light |
| Construction | Body/Trim: AISI 316L Stainless Steel |
| Wattage | 2.5W, 3.5W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2200K, 2700K, 3000K, 4000K |
| CRI | 80 |
| Delivered Lumens |
29 lm (2.5W), 44 lm (3.5W) - 3000K, 180° 42 lm (2.5W), 62 lm (3.5W) - 3000K, 4x55° |
| Optic Options | 7 Standard Radial |
| Finishes |
Stainless Steel, Custom RAL (4 Stage Marine Grade Finish) |
| Accessories | See Datasheet |
| Bug Rating |
B0-U1-G0 (3000K, 2.5W/3.5W, R1, R2, R5) B0-U2-G0 (3000K, 2.5W, R3, R4, R6) B0-U2-G1 (3000K, 3.5W, R3, R4) |
| Ingress Protection | IP65, IP68 |
| Impact Resistance | IK10 |
Walkover rated to 1102 lbs
