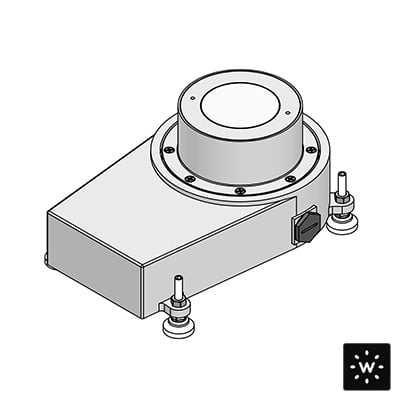

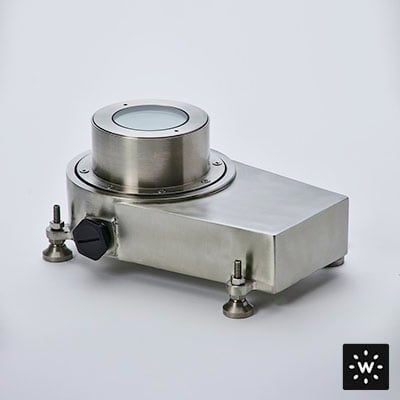

The Centaur C4D is a 4” diameter in-grade uplight with a Ø2.5” aperture, made of stainless steel that is suitable for power washing and is driveover rated up to 11,000 lbs.
| Application | In-Grade Uplight |
| Construction |
Body and Trim: Stainless Steel 304 Alloy Jbox: Cast Stainless Steel Lens: 0.4” Tempered Glass Lens Frame: Threaded Bottlecap |
| Wattage | 9W |
| Power Supply | Integral 120-277VAC |
| Dimming | 0-10V Dimming |
| CCT | 3000K, 4000K |
| CRI | >80 |
| Delivered Lumens |
270 lm (9W, 6°, 3000K) 224 lm (9W, 6°x25°, 3000K) |
| Optic Options | None, 6°, 25°, 6°x25° |
| Finishes | Stainless Steel 304 Alloy |
| Accessories | See Datasheet |
| Ingress Protection | IP68, IP69 |
