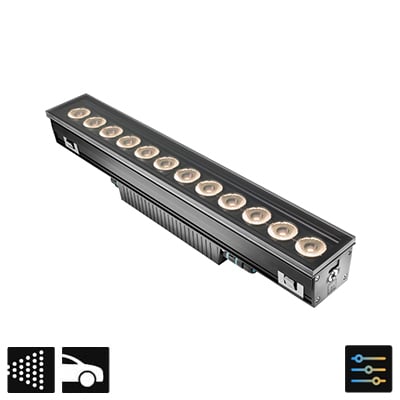

Colorado is an adjustable (+/- 20°), driveover-rated rated up to 3300 lbs, linear profile with a powerful lighting performance – more that 5700 lm per square meter (3.3 ft) – for architectural lighting of facades up to 65.6 ft (20 m) tall. Each series is available in 3 lengths and 3 configurations (recessed flush, recessed frame and surface mounted using brackets). Colorado 8 Series is the recessed flush, tunable white version.
| Application | Linear In-Grade Uplight - Tunable White |
| Construction |
Body: Black Anodized Anticorodal Aluminum Caps: Technopolymer Lens: Serigraphed or Acid-Etched (Diffuse Version) & Transparent Extra-Clear Glass |
| Wattage | 43W, 64W, 85W |
| Power Supply | Integral |
| Dimming | Available |
| CCT | Tunable White (1800K-3000K) |
| Delivered Lumens |
3845 lm (Colorado 8.0 - 3500K, 16°) 5768 lm (Colorado 8.1 - 3500K, 16°) 7691 lm (Colorado 8.2 - 3500K, 16°) |
| Optic Options | 5 Adjustable Available, See Datasheet |
| Accessories | Anodized Black |
| Bug Rating |
B3-U1-G0 (Colorado 8.0 - 26°, 16°, 16x66°) B4-U1-G0 (Colorado 8.1 - 26°, 16°) B3-U1-G0 (Colorado 8.1 - 36°, 16x66°) B4-U1-G0 (Colorado 8.2 - 26°, 16°, 16x66°) |
| Ingress Protection | IP65, IP67, IP69 |
| Impact Resistance | IK10 |
