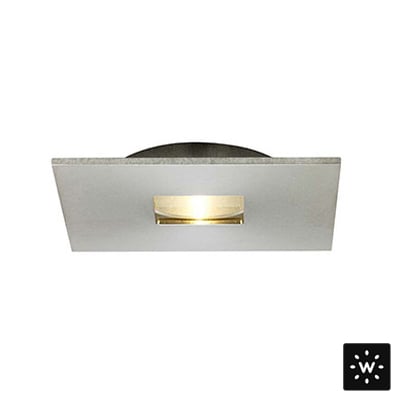

Dotz Pisces is a square wet label LED downlight with a square aperture and on board 0-10V dimming which can be installed recessed with 3 springs or panel mounted with 1.0” conduit nut on the threaded part of the body. It is available with a clear, frosted or opal lens and CNC machined trim in aluminum, brass or stainless steel.
| Application | Downlight |
| Construction |
Body: Die Cast Aluminum Lens: 3/16” Tempered Glass |
| Wattage | 1W, 3W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming |
Internal board for 24VDC operation and on board 0-10V dimming |
| CCT |
3000K, 4000K, 5000K (Static color on request) |
| CRI | >80 |
| Delivered Lumens |
24.3 lm (1W, 5000K, frosted, no optic) 8.3 lm (1W, 5000K, opal, no optic) 81 lm (3W, 3000K, clear, 25°) 43 lm (3W, 3000K, frosted, no optic) 14.5 lm (3W, 3000K, opal, no optic) |
| Optic Options | 3 Available, See Datasheet |
| Finishes | 7 Standard, See Datasheet |
| Ingress Protection | IP65 |
Fixture complies with LM79 and LM80
