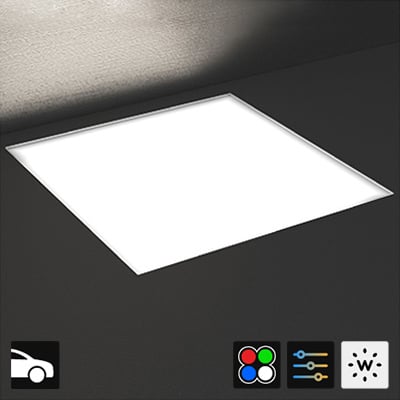

MIN / MAX Quadrato is a square, IP68-rated LED luminaire for flush installation in fountains or swimming pools, both indoors or outdoors – submersible to 1 m (3.28’). It is available in 5 different sizes with sandblasted or anti-slip glass. Pressure switch on request. Can be ordered in aluminum IP67 version for in-grade non-fountain use.
| Application | Fountain Uplight, Swimming Pool |
| Construction |
Body: Stainless Steel Lens: Extra Clear Tempered Glass |
| Wattage | 15W, 30W, 45W, 60W, 76W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available, See Datasheet |
| CCT |
2700K, 3000K, 4000K (RGBW or Tunable White on request) |
| Delivered Lumens | 800-4000 lm (3000K) |
| Optic Options | Diffuse |
| Finishes | Sandblasted or Antislip Glass |
| Accessories | See Datasheet |
| Bug Rating | B1-U0-G0 |
| Ingress Protection | IP68 - Submersible to 5 m (16.4') |
| Impact Resistance | IK10 |
Driveover rated for 11,000 lbs
