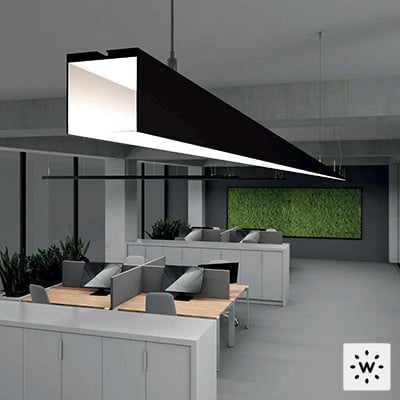

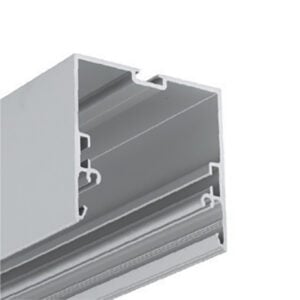

Phil V2 is a surface mounted or suspended LED linear profile made of aluminum with a rating of UGR < 19. It is offered in 2 lengths, 78.7” or 159.5”. and 4 standard finishes, and 5 diffuser options.
| Application | Surface Mount or Suspended |
| Construction |
Body: Aluminum Diffuser: PMMA (Acrylic) Connectors: Zinc Coated Steel |
| Wattage | 18W per 3.28 ft (1 m) |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2700K, 3000K, 4000K |
| CRI | 85 |
| Delivered Lumens | 2034 lm per 3.28 feet (3000K) |
| Optic Options | LED Tape, Field Cuttable |
| Finishes |
Anodized White Painted Black Anodized Raw Aluminum |
| Accessories | Required, See Datasheet |
| Ingress Protection | IP20 |
