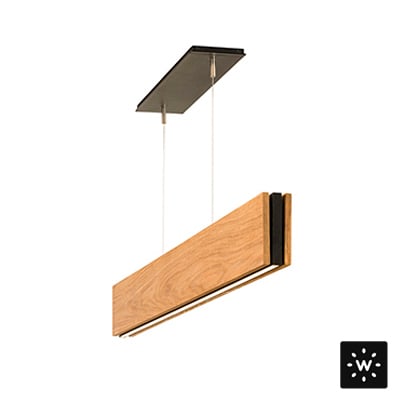

Plank Athena is an elegant lighting solution designed for the minimalist, using the Lutron Athena Wireless Node. With a 0.625” body and wooden side panels, Plank offers linear spread upper emission and diffused lower. It has adjustable integral 120-277VAC, 0-10V dimming drivers which make for easy integration into office, residential and commercial environments.
| Application | Pendant with Athena Wireless Node |
| Construction |
Body: Extruded Aluminum Side Panels: Wood - available white oak, maple, cherry or walnut Mounting: Aircraft Cable |
| Wattage | 72W (4 ft) |
| Power Supply | Integral 120-277VAC |
| Dimming | 0-10V Dimming |
| CCT | 2700K, 3000K, 3500K, 4000K |
| CRI | >90 |
| Delivered Lumens | Up - 1848 lm, Down - 1866 lm (4 ft, 3000K) |
| Optic Options | Up: Linear Spread, Down: Diffuse |
| Finishes | 4 Wood Finishes, See Datasheet |
| Ingress Protection | IP20 |
