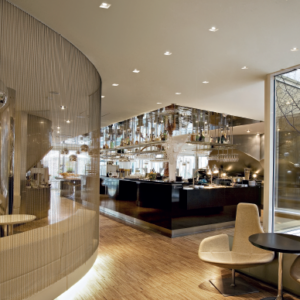

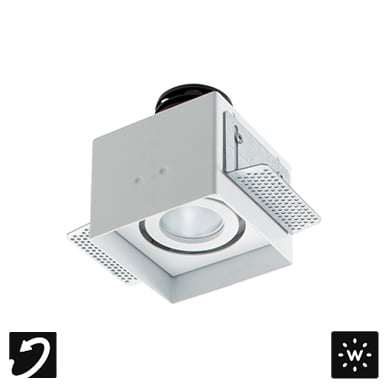

Quad Maxi is a part of the Quad family of recessed downlights for indoor use. One of it’s unique features are recessed optics for greater visual comfort. It is available with adjustable optics, white light and 1, 2, and 3 lamp linear configuration. Excellent for general lighting in commercial and architectural applications.
| Application | Recessed Downlight |
| Construction |
Body: Anodized Aluminum Alloy Trim: Steel Cable Length: 0.98’ |
| Wattage | 8W |
| Power Supply | Remote 500mA Constant Current |
| Dimming | Available |
| CCT | 2700K, 3000K, 4000K |
| CRI | >80 |
| Delivered Lumens | 425 lm (3000K, 29°) |
| Optic Options | 20°, 29°, 54° (tiltable ±15°) |
| Finishes |
White, Custom RAL (4 Stage Marine Grade Finish) |
| Accessories | Required - See Datasheet |
| Ingress Protection | IP40, IP43 Installed |
