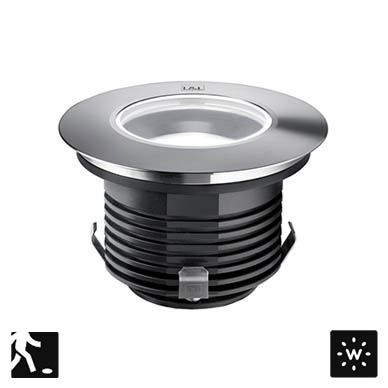

Walkover rated LED in-grade uplight for outdoor use with no visible screws. Can also be a downlight when used with the fixing spring accessory. The Bright 3, Smoothy 5 and Litus 5 series all use the same LED.
| Application | In-Grade Uplight or Downlight |
| Construction |
Body: Anodized aluminium Trim: AISI 316L Stainless Steel or Brass Lens: Tempered, Transparent (optics version) or Sandblasted (diffuse version) Extra-clear Glass |
| Wattage | 10W / 13W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available, See Datasheet |
| CCT | 2700K, 3000K, 4000K |
| CRI | >80, 90 |
| Delivered Lumens | 6454-1065 lm, See Datasheet |
| Optic Options | 7 Standard, See Datasheet |
| Finishes | Stainless Steel or Brass, RAL upon request |
| Accessories | See Datasheet |
| Bug Rating |
B0-U4-G0 (3000K, 10W, S, M, L, K, W, D) B0-U3-G0 (3000K, 10W, P) B0-U5-G0 (3000K, 13W, L, K) B0-U4-G0 (3000K, 13W, S, M, P, W, D) |
| Ingress Protection | IP67 |
| Impact Resistance | IK08 |
Fixture equipped with IPS protection system.
