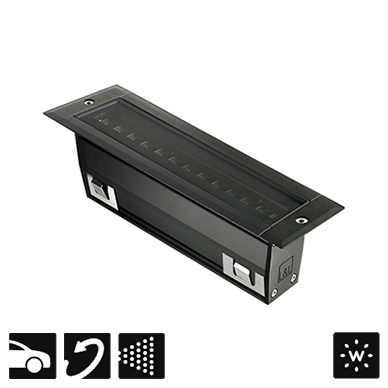

Tago is a driveover-rated, linear profile that is suitable for architectural lighting of facades of historic and public buildings, hotels and residential exteriors. It is available in 3 lengths with a wide range of optics and 4 color temperatures. Tago 1 series is the recessed version with regressed frame, ± 20° adjustable externally. Suitable for power washing.
| Application | Adjustable Linear Profile |
| Construction |
Body: Anodized Anticorodal Aluminum Caps: Technopolymer Lens: Tempered, Serigraphed & Extra-Clear Glass |
| Wattage | 14W, 24W, 51W |
| Power Supply | Integral 120-277VAC |
| Dimming | 0-10V Dimming |
| CCT | 2200K, 2700K, 3000K, 4000K |
| CRI | 80 |
| Delivered Lumens |
932 lm (Tago 1.0 - LN Optic 29°) 1864 lm (Tago 1.1 - LN Optic 29°) 3728 lm (Tago 1.3 - LN Optic 29°) |
| Optic Options | 7 Standard |
| Finishes |
Anodized Black (4 Stage Marine Grade Finish) |
| Accessories | See Datasheet |
| Bug Rating |
B1-U1-G0 (Tago 1.0 - 29°) B2-U1-G0 (Tago 1.1 - 29°) B3-U1-G0 (Tago 1.3 - 29°) |
| Ingress Protection | IP65, IP67, IP69 |
| Impact Resistance | IK09 |
Fixture equipped with IPS protection system.
Fixture equipped with PID (Protective Impedance Device)
