Designplan Catalog

•

  855 Monitor Vandal Resistant Surface Mounted LED, Various Lengths, 7W / 14W, IP65

•

  9 Direct/Indirect LED Pendant, 0-10V, 72W/144W, Up: 1848 lm/Down: 1866 lm, IP20

•

  9 Athena Direct/Indirect LED Pendant, 0-10V, 72W, Up: 1848 lm/Down: 1866 lm, IP20

•

  9 W Direct/Indirect Wall Mount LED, 3 lengths, 45W/54W/72W, 0-10V, IP20

•

  9 W Athena Direct/Indirect Wall Mount LED, 4 foot, 72W, 0-10V, IP20

•

  Alice Horizontal & All Light Recessed LED, 5.0″ x 9.0″, 6.7W / 11W, 141 / 400 lm, IP65

•

  AMP Wet Label Square LED Wall Mount, Up/Down, 8W, 198 lm, IP65

•

  Apex/Apex Grill LED Wall Mount, 8.25″ Sq., 12W, 66 lm, IP55

•

  Aurora LED Surface Mount, Ø1.8″ lens x 4 heights, 9W / 6W DimWarm / 5W RGBW, 234 lm, IP65

•

  Big Slide Adjustable Recessed Downlight, Ø3.8″, 10W, 909 lm, IP20

•

  Borealis LED Surface Mount, Ø6.0″ lens x 4 heights, 9W / 6W DimWarm / 5W RGBW, IP65

•

  Broadway BR35-R Adj. RGBW Floodlight, Ø8.2″, 35W, 3500 lm, IP66

•

  Broadway BR100-R Adj. RGBW Floodlight, Ø17.7″, 100W, 10,000 lm, IP66

•

  Broadway BR150-R Adj. RGBW Floodlight, Ø17.7″, 150W, 15,000 lm, IP66

•

  Broadway BR150-T Adj. Floodlight, Tunable White, Ø17.7″, 150W, 15,000 lm, IP66

•

  Broadway BR100-T Adj. Floodlight, Tunable White, Ø17.7″, 100W, 10,000 lm, IP66

•

  Broadway BR35-T Adj. Floodlight, Tunable White, Ø8.6″, 35W, 3500 lm, IP66

•

  Broadway BR150-W Floodlight, Ø17.7″, 150W, 15,000 lm, IP66

•

  Broadway BR100-W Adj. Floodlight, Ø17.7″, 100W, 10,000 lm, IP66

•

  Broadway BR35-W Adj. Floodlight, Ø8.6″, 35W, 3500 lm, IP66

•

  Bubble & Bic Round LED Wall Mount, Ø11.9″, 30W, 2417 lm, IP65

•

  CDR Vandal Resistant Downlight, IP65 Wet Label, Suitable for Steam Rooms, 6W Dim to Warm

•

  CSR Vandal Resistant Downlight, IP65 Wet Label, Suitable for Steam Rooms, 9W Static White

•

  CTR Vandal Resistant Downlight, IP65 Wet Label, Suitable for Steam Rooms, 5W RGBW+Tunable White

•

  Centaur C1.0 (Round) or CS.0 (Square) In-Grade Uplight, Driveover, Ø1.5″ or 1.5″ Sq, 4W, RGBW, IP69K

•

  Centaur C1.H In-Grade Uplight, Driveover, Ø1.5″, 4W, RGBW, IP69K

•

  Centaur C1X LED In-Grade Uplight, Driveover, Ø1.0″, 1W, 44 lm, IP68, IP69K

•

  Centaur C2C LED In-Grade Uplight, Driveover, RGBW / TW, Ø2.5″, 5W, IP68, IP69K

•

  Centaur C2X LED In-Grade Uplight, Driveover, Ø2.5″, 1W/3W, 260 lm, IP68, IP69K

•

  Centaur C4C LED In-Grade Color Changing Uplight, Driveover, Ø4.0″, 5W, IP68, IP69K

•

  Centaur C4G LED In-Grade Uplight, Driveover, Ø4.0″, 3W, 360 lm, IP68, IP69K

•

  Centaur C4X LED In-Grade Uplight, Driveover, Ø4.0″, 3W/9W, 780 lm, IP68, IP69K

•

  Cirko Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  CH2 Round LED Wall Mount, Ø3.8″, 1W, 350mA, IP67

•

  Cloud 9 LED Luminous Panel, 11.72W per foot (LEDs on 2 sides only), 1200 lm per foot, 24VDC

•

  CDX LED In-Grade Uplight, Ø5.8″, 12W, 981 lm, Driveover, IP68, IP69K

•

  CUA Adj. In-Grade LED Uplight, Ø7.0″, Static / Tunable White+RGBW, Driveover, IP67, IP69K

•

  CUL LED In-Grade Uplight, Ø7.0″, Static / Tunable White + RGBW, Driveover, IP67, IP69K

•

  CXA Adjustable In-Grade Uplight, Ø5.8, Static / RGBW+TW, Driveover, IP69K

•

  Demi Slot Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Dotz Cassiopea Square Wet Label LED Downlight, 2.4″ Sq., 1W / 3W, 81 lm, IP65

•

  Dotz Dorado Round LED Wet Label Downlight, Ø2.4″, 1W / 3W, 81 lm, IP65

•

  Dotz Hydra Round Wet Label LED Downlight, Ø2.4″, 1W / 3W, 81 lm, IP65

•

  Dotz Pegasus Round LED Wet Label Downlight, Ø1.9″, 1W / 3W, 81 lm, IP65

•

  Dotz Pisces Square Wet Label LED Downlight, 2.4″ Sq., 1W / 3W, 81 lm, IP65

•

  Dotz Taurus Q Wet Label LED Downlight, 1.9″ Sq., 1W / 3W, 81 lm, IP65

•

  Dotz Taurus Square Wet Label LED Downlight, 1.9″ Sq., 1W / 3W, 81 lm, IP65

•

  Dotz Ursa Major LED Round Recessed Downlight, Ø1.9″, 1W / 3W, 192 lm, IP65

•

  Dotz Ursa Minor LED Round Recessed Downlight, Ø1.9″, 1W / 3W, 192 lm, IP65

•

  Fatz LED Direct/Indirect Pendant, 1.1″ w x 6.0″ h x 48.0″ l, 82W, 7428 lm

•

  Frack Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Frick Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Half Pint Direct/Indirect LED Pendant, 0.6″ x 3.0″, 72W / 144W, Up: 1848 lm / Down: 1866 lm, IP20

•

  Half Pint Athena Direct/Indirect LED Pendant, 0.6″ x 3.0″, 72W, Up: 1848 lm / Down: 1866 lm, IP20

•

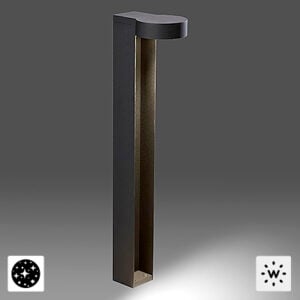

  Kasandra LED Bollard, 2 heights, 12W – static/tunable white, 13W – RGB, IP65

•

  Klaatu LED Bollard, 4.0″ x 24.0″, 36.0″ or 48.0″ h, 15W, Integral Driver, IP65

•

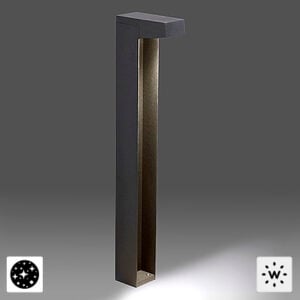

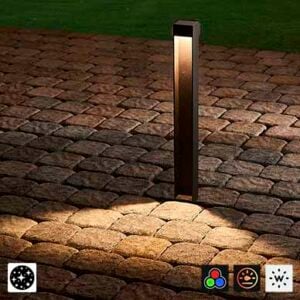

  Klak LED Bollard, 2.5″ x 12.0”, 24.0″ or 36.0″ h, 6W (Dim Warm), 12W (Static), 13W (RGB), IP65

•

  Lambda Direct/Indirect LED Pendant, 0-10V, 72W/144W, Up: 2254 lm, Down: 1692 lm

•

  Lambda Athena Direct/Indirect LED Pendant, 0-10V, 72W, Up: 2254 lm, Down: 1692 lm

•

  LL1 In-grade LED Uplight, Driveover, 2.0′ or 4.0′ x 4.13″ 9W per foot, IP68 / IP69K

•

  LL2 In-grade LED Uplight, Driveover, 2.0′ or 4.0′ x 4.13″ 15W per foot, IP68 / IP69K

•

  LL3 LED In-grade Uplight, Driveover, 2.0′, 3.0′, 4.0′, 6W per ft, IP68 / IP69K

•

  LL4 In-grade LED Uplight, Driveover, 3 lengths, 16W/ft, 2715 lm, IP68 / IP69K

•

  LSC Continuous Run Linear Low Voltage Slot, Suitable for Steam Rooms, Static or Tunable, IP65

•

  LSW Vandal Resistant Linear Low Voltage Slot, Suitable for Steam Rooms, Static or Tunable, IP65

•

  Milli V LED Pendant – DISCONTINUED WHEN INVENTORY DEPLETED

•

  Nebular Round LED Wall Mount, Ø11.9″, 30W, IP55

•

  Nobody Quatro LED – DISCONTINUED after inventory depleted

•

  On The Rocks Direct/Indirect LED Pendant, 72W, 1848 lm / 1220 lm, IP20

•

  Plank LED Direct/Indirect Pendant, 4/6/8 ft, 72W/144W, Up: 1848 lm/Down: 1866 lm, IP20

•

  Plank Athena LED Direct/Indirect Pendant, 4 ft, 72W, Up: 1848 lm/Down: 1866 lm, IP20

•

  Plank W Direct/Indirect Wall Mount LED, 3 lengths, 45W/54W/72W, 0-10V, IP20

•

  Plank W Athena Direct/Indirect Wall Mount LED, 4 foot length, 72W, 0-10V, IP20

•

  Quay Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Q-10-R Vandal Resistant Downlight, IP65 Wet Label, Suitable for Saunas, Steam Rooms, 10W, IC/Chicago Plenum

•

  QHR Halogen Downlight, IP65 Wet Label, Suitable for SAUNAS and Steam Rooms, IC/Chicago Plenum

•

  QSI Vandal Resistant Downlight, IP65 Wet Label, Integral, 26W, IC/Chicago Plenum

•

  QSR Vandal Resistant Downlight IP65 Wet Label, Suitable for Steam Rooms, 26W, IC/Chicago Plenum

•

  QT Vandal Resistant Downlight, IP65 Wet Label, Tunable White/RGBW, 25W, IC/Chicago Plenum

•

  QTR Vandal Resistant Downlight for Steam Rooms, Tunable White/RGBW, 25W, IC/Chicago Plenum, IP65

•

  R-10-R Vandal Resistant Downlight, IP65 Wet Label, Suitable for Saunas, Steam Rooms, 10W, IC/Chicago Plenum

•

  RDD GEN 2 LED Wet Label Vandal Resistant Downlight w Clear Lens and Center Diffusing Dot, 30W, IP65

•

  RDL/RHL Wet Label CFL/MH Downlight – DISCONTINUED when inventory depleted

•

  RDO GEN 2 LED Wet Label Vandal Resistant Downlight, 26W, Open Bottom-Regressed Lens, IP65

•

  RDP GEN 2 LED Wet Label Vandal Resistant Downlight with Clear Lens, 30W, IP65

•

  RDR LED Retro Fit Kit for RDL/RHL – Wet Label Vandal Resistant Downlight

•

  RDW GEN 2 LED Wet Label Vandal Resistant Downlight with Opal White Lens, 29W, IP65

•

  RHR Halogen Downlight, IP65 Wet Label, Suitable for SAUNAS and Steam Rooms, IC/Chicago Plenum

•

  RSI Vandal Resistant Downlight, IP65 Wet Label, Integral, 26W, IC/Chicago Plenum

•

  RSR Vandal Resistant Downlight, IP65 Wet Label, Suitable for Steam Rooms, 26W, IC/Chicago Plenum

•

  RT Vandal Resistant Downlight, IP65 Wet Label, Tunable White/RGBW, 25W, IC/Chicago Plenum

•

  RTR Vandal Resistant Downlight for Steam Rooms, Tunable White/RGBW, 25W, IC/Chicago Plenum, IP65

•

  RX-10-R Vandal Resistant Downlight, IP65 Wet Label, Suitable for Saunas,Steam Rooms, 10W, IC/Chicago Plenum

•

  RXH Halogen Downlight, IP65 Wet Label, Suitable for SAUNAS and Steam Rooms, IC/Chicago Plenum

•

  RXI Vandal Resistant Downlight, IP65 Wet Label, Integral, IC/Chicago Plenum

•

  RXR Vandal Resistant Downlight, IP65 Wet Label, Suitable for Steam Rooms, 26W, IC/Chicago Plenum

•

  RXT Vandal Resistant Downlight, IP65 Wet Label, Tunable White/RGBW, 25W, IC/Chicago Plenum

•

  RXTR Vandal Resistant Downlight for Steam Rooms, Tunable White/RGBW, 25W, IC/Chicago Plenum, IP65

•

  Slot Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Spoke Round LED Wall Mount, Ø11.9″, 30W, IP55

•

  Square LED Vandal Resistant Wall or Ceiling, 18W, 897 lm, IP65

•

  Square One Vandal Resistant LED Surface Mount, IP65

•

  Squiggle Shallow Round LED Wall Mount, Ø11.9″, 30W, IP65

•

  Stiletto LED Surface Mount, Ø1.5″ x 4 heights, 9W / 6W DimWarm / 5W RGBW, 720 lm, IP65

•

  Triton Compact Vandal Resistant LED, 2 ft or 4 ft, 7.5W per ft, IP65

•

  Triton 4 Compact Vandal Resistant LED with 4-Hr Emergency, 2 ft, 7.5W per ft, IP65

•

  Trixie Round LED Wall Mount, Ø4.7″, 2W, 71 lm, IP65

•

  Vinny 180° LED Bollard, Ø4.8″ x 3 heights, 10W, IP65

•

  Ziggy™ Adjustable LED Lighting System, 2′ / 3′ / 4′ length, 21W / 32W / 63W, IP20

•

  Zio LED Surface Mount, Ø8.3″ x 1.8″, 13W, Static-1157 lm, Tunable White & RGBW, IP65

•
