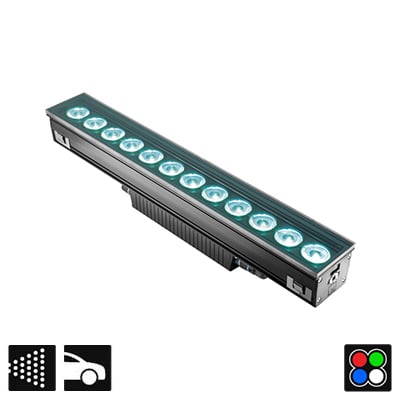

Colorado is an adjustable (+/- 20°), driveover-rated up to 3300 lbs, linear profile with a powerful lighting performance – more that 5700 lm per square meter (3.3 ft) – for architectural lighting of facades up to 65.6 ft (20 m) tall. Each series is available in 3 lengths and 3 configurations (recessed flush, recessed frame and surface mounted using brackets). Colorado 5 Series is the recessed flush, RGBW version. Suitable for power washing.
| Application | RGBW Linear In-Grade Uplight |
| Construction |
Body: Black Anodized Anticorodal Aluminum Caps: Technopolymer Lens: Serigraphed or Acid-Etched (Diffuse Version) & Transparent Extra-Clear Glass |
| Wattage | 43W, 64W, 85W |
| Power Supply | Integral 120-277VAC |
| CCT | RGBW |
| Delivered Lumens |
2547 lm (Colorado 5.0 - 3000K, 15°) 3820 lm (Colorado 5.1 - 3000K, 15°) 5104 lm (Colorado 5.2 - 3000K, 15°) |
| Optic Options | 5 Adjustable, See Datasheet |
| Finishes | Anodized Black |
| Accessories | See Datasheet |
| Bug Rating |
B2-U1-G0 (37°, RGB) B1-U1-G0 (37°, 30K) Colorado 5.0 B2-U1-G0 (37°, RGB, 30K) Colorado 5.1 B3-U1-G0 (37°, RGB) B2-U1-G0 (37°, 30K) Colorado 5.2 |
| Ingress Protection | IP65, IP67, IP69 |
| Impact Resistance | IK10 |
Driveover Rated Up to 3748 lbs
