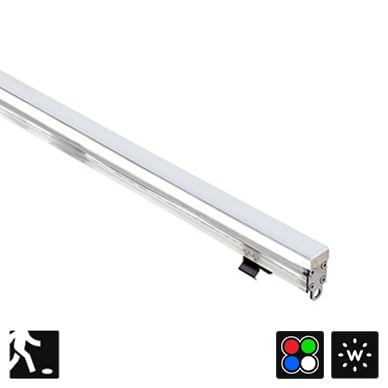

Rio Sub are recessed linear profiles with diffused light that can be used for underwater, fountain (max depth 32.8 in) and outdoor applications to illuminate the ground, wall and ceiling. Available in static white or RGBW and with the use of the aluminum housing is walkover up to 1100 lbs. Minimum spacing between fixtures is 1.97”.
| Application | Fountain / In-grade Uplight |
| Construction |
Body: 316L Stainless Steel Lens: PMMA |
| Wattage |
6W Static, 11W RGBW (1.1) 12W Static, 23W RGBW (1.2) |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available |
| CCT | 2600K, 2800K, 3700K, RGBW |
| CRI | >80 |
| Delivered Lumens | 140-360 lm |
| Optic Options | Diffuse |
| Finishes | AISI 316L Stainless Steel |
| Accessories | See Datasheet - REQUIRED OUTER CASING |
| Bug Rating | B0-U1-G0 (2800K) |
| Ingress Protection | IP68 |
| Impact Resistance | IK10 |
Fixture equipped with IPS Protection System.
UL 676
