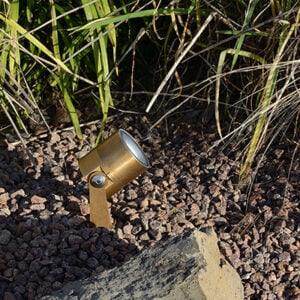

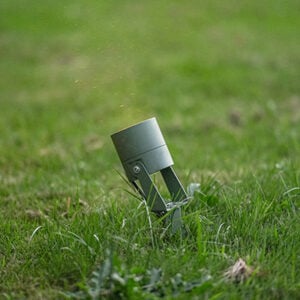

The Ginko series IP66, IP69 (suitable for power washing) projectors are small and versatile. Available in a variety of finishes, optics (some models have integral adjustable optics), and 80 or 90 CRI. Ginko 2.0 is the Ø2.1”, static white version.
| Application | Floodlight/Projector |
| Construction |
Body: Anti-corrosive aluminum or 316L SS Bracket: Stainless Steel Lens: Tempered extra-clear glass |
| Wattage | 3.5W / 5W / 7W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available, See Datasheet |
| CCT |
2700K, 3000K, 4000K (3500K on request, not available on 5° optic) |
| CRI | >80, >90 |
| Delivered Lumens | 284 lm - 463 lm, See Datasheet |
| Optic Options |
5° (3.5W only), 8°, 11°, 17°, 21° Sharp, 34°, 45°, 47°, 61° Sharp, 68°, 13°x52°, 54°x15° |
| Finishes | 7 Standard Finishes, See Datasheet |
| Accessories | See Datasheet |
| Bug Rating |
B0-U0-G0 (3000K, 5W, 61°) B0-U1-G0 (3000K, 5W, 68°, 5°) B1-U0-G0 (3000K, 8°, 21°, 54°x15°) B1-U0-G0 (3000K, 7W, 61°) B1-U1-G0 (3000K, 11°, 17°, 34°, 45°, 47°, 13°x52°) B1-U1-G0 (3000K, 7W, 68°) |
| Ingress Protection | IP66, IP69 (Tested to EN / IEC 60598-1) |
| Impact Resistance | IK07 |
Fixture comes equipped with IPS protection system.
The entire Ginko family has won a Muuuz International Award (MIAW) for 2019.
