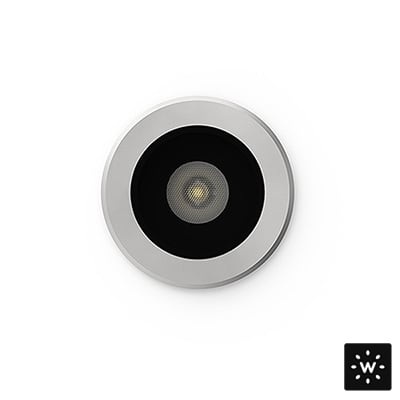

OLY N-80 Recessed LED Uplight, Stainless Steel, Ø3.2", 6W, 607 lm, IP66, IP67

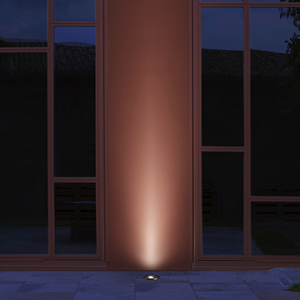

OLY is a round, recessed, stainless steel LED uplight suitable for outdoor installation in the ground or floor for illuminating facades and architectural spaces. It is available in 3 sizes, with 4 color temperatures, 3 optic options, and 3 Hard Coat Treatment finishes. OLY N-80 is the Ø3.2” 6W version.

Application	Recessed Uplight
Construction	Body: AISI 316L Stainless Steel Lens: 0.31” Extra-clear, Tempered Glass
Wattage	6W
Power Supply	Remote 500mA Constant Current
Dimming	Available
CCT	2700K, 3000K, 4000K
CRI	>80
Delivered Lumens	607 lm (3000K)

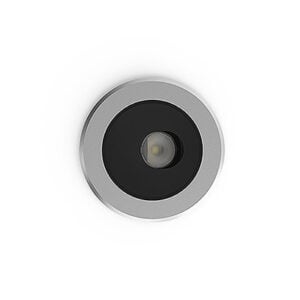

Optic Options	10°, 45°, 60°, 10°x40°, Asym. Wide, Asym. Narrow
Finishes	Inox Natural Inox Graphite Inox Bronze
Accessories	See Datasheet
Bug Rating	B1-U0-G0 (3000K, All Optics)
Ingress Protection	IP66, IP67
Impact Resistance	IK09

Hard Coating Treatment is the surface treatment of all the products by Stral Lighting. It is not a skin of color, but instead is a process that allows for the color to be absorbed all the way through. If a product is scratched, the color beneath is the same as the color on the surface. It guarantees a high superficial resistance to corrosion and atmospheric agents, as well as making the products anti-fingerprint and anti-stain. Available in three finishes Inox Natural, Inox Graphite and Inox Bronze.

WARRANTY: 10 Years Against Corrosion
5 Years on Electrical Components
