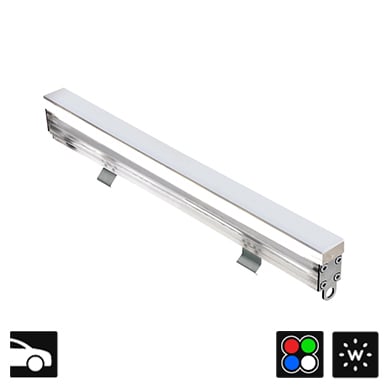

Slim, sleek and tough, the Rio 1 Series recessed linear profile illuminates ground, wall and ceiling installations with no dark zones between fixtures. Choose from 5 standard lengths, Stainless Steel or Aluminum Housings, Static White or RGB. Driveover up to 11,000 lbs (with use of Aluminum Housings).
| Application | Recessed Linear Profile |
| Construction |
Body: PMMA End Caps: 316L Stainless Steel Lens: Opal PMMA Housing: Aluminum or Stainless Steel |
| Wattage | Static White: 3W-24W, RGB: 4.5W-34W |
| Power Supply | Remote 24VDC Constant Voltage |
| Dimming | Available, See Datasheet |
| CCT | 2600K, 2800K, 3700K, RGB |
| CRI | >80 |
| Delivered Lumens | 50 lm - 560 lm, See Datasheet |
| Optic Options | Diffuse |
| Accessories | See Datasheet |
| Bug Rating |
B0-U1-G0 (2800K, 1.0, 1.1, 1.2, 1.3) B0-U1-G1 (2800K, 1.4) |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
Fixture equipped with IPS Protection System.
